Fluid Ends

Forum manufactures both stainless and carbon steel fluid ends to improve your operating efficiencies and reduce downtime.

Our new Extended Service and Compack fluid ends are engineered with several innovative design features to mitigate the three most common premature failure modes:  fatigue cracking, stuck retainer nuts, and packing bore washouts.  Additionally, our Compack design streamlines the packing change out process, as it allows field hands to pre-pack the nuts in a clean, controlled environment.  This not only provides for a more efficient operations by reducing downtime, but it also eliminates the possibility of installing the packing incorrectly, which would lead to a costly failure.

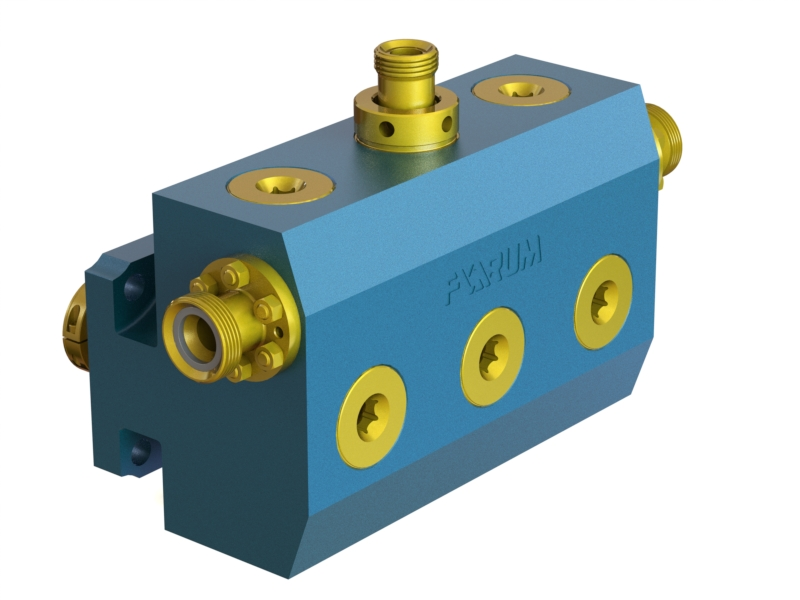

2250 BHP Triplex Fluid End - 37"

Features
  • 8″ stroke, 12″ centers
  • Available with 4.00″ – 5.00″ plungers
  • Valve-over-valve design
  • Metallurgy: stainless and carbon steel
  • Patented Banded Bore technology reduces stresses at the intersecting bores
Power End Compatibility

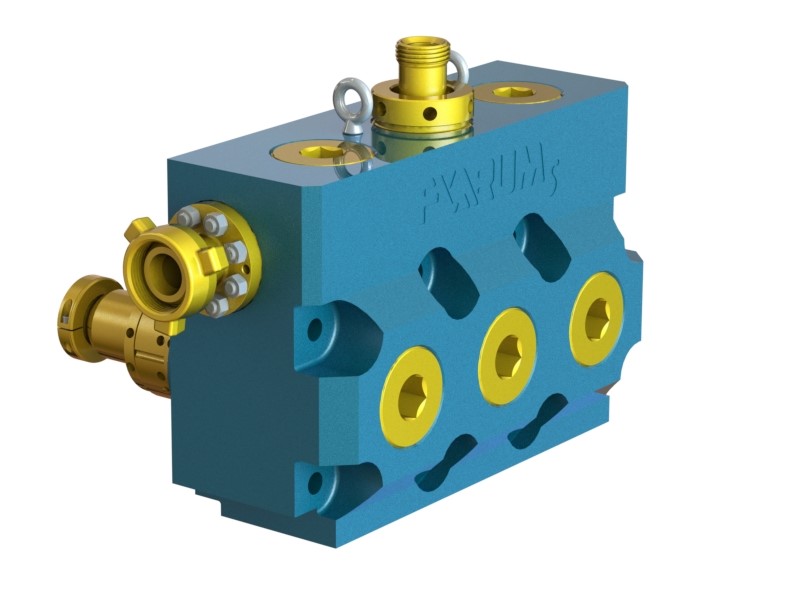

2500 HP Triplex Fluid End

Features
  • 10″ stroke, 12″ centers
  • Available with 4.50“ plungers
  • Valve-over-valve design
  • Metallurgy: carbon steel
Power End Compatibility
  • SPM TWS 2500 Destiny

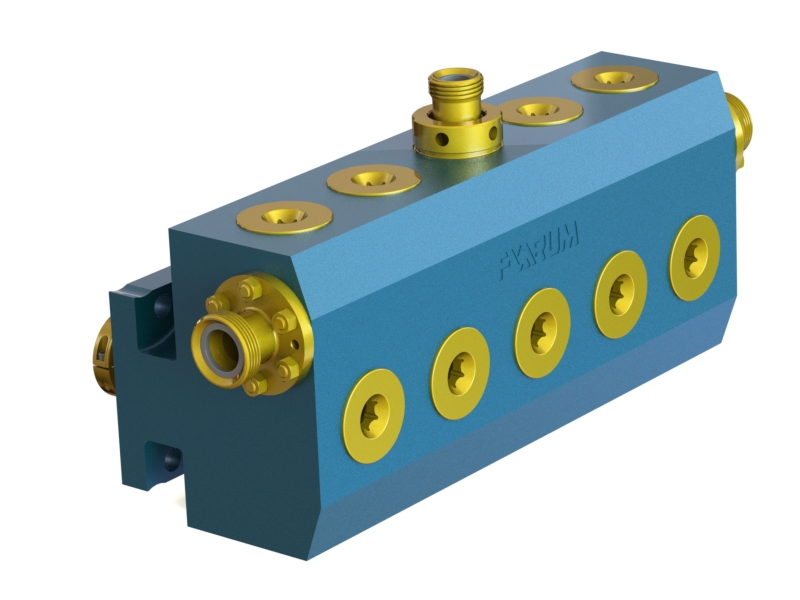

2500 HP Quintuplex Fluid End – 52”

Features
  • 8″ stroke, 10″ centers
  • Available with 3.75″ – 5.00″ plungers
  • Valve-over-valve design
  • Metallurgy: stainless and carbon steel
  • Patented Banded Bore technology reduces stresses at the intersecting bores
Power End Compatibility

3000 HP Quintuplex Fluid End – 60”

Features
  • 8″ stroke, 12″ centers
  • Available with 4.00″ – 4.50″ plungers
  • Valve-over-valve design
  • Metallurgy: stainless steel
  • Patented Banded Bore technology reduces stresses at the intersecting bores
Power End Compatibility

Packing Nut Locks

As a critical component to your pressure pumping operations, fluid ends are also considered one of the most vulnerable to premature failure in the field. Determined to solve an issue many operators are faced with, our team of experts have designed Forum’s Packing Nut Lock tool, eliminating packing nut back-off occurrences.

Forum’s new Packing Nut Locks apply force between the stay rods and packing nuts to mitigate the packing nuts from backing off. Compatible with most fluid ends, our patent-pending design can be easily installed or removed with a hex wrench, making our Packing Nut Lock a simple solution to maximize the longevity of your fluid ends.



Key Features



  • Compatible with Most Fluid Ends
  • Eliminates Packing Nut Back Offs
  • Tool Locks in Any Packing Nut Position
  • QPQ Surface Finish Helps to Ensure No Corrosion/Rust
  • Integrated Magnet Allows Locks to Remain in Place When Loosened
