Onshore Applications

The innovative solution for oil, gas and water gathering systems and transmission lines

“Coiled Line Pipe is a continuously milled length of steel tubing. The pipe is externally coated in line before spooling and final testing. It is ideally suited for well tie-ins, long flowlines and pipelines. Coiled Line Pipe allows for a project to be completed without field welding.”

Why Use Coiled Line Pipe?

  • 100% compatible with other steel pipe
  • Safer, faster and much less costly installation than any alternative
  • Industry-leading QHSE, recognized by API Q1 and an API 5LCP monogram (License #0006)
  • Long, continuous pipe lengths can be utilized in directional bore pulls or in river crossings for quick and less risky deployment
  • State-of-the-art coatings provide unrivalled protection in any terrain

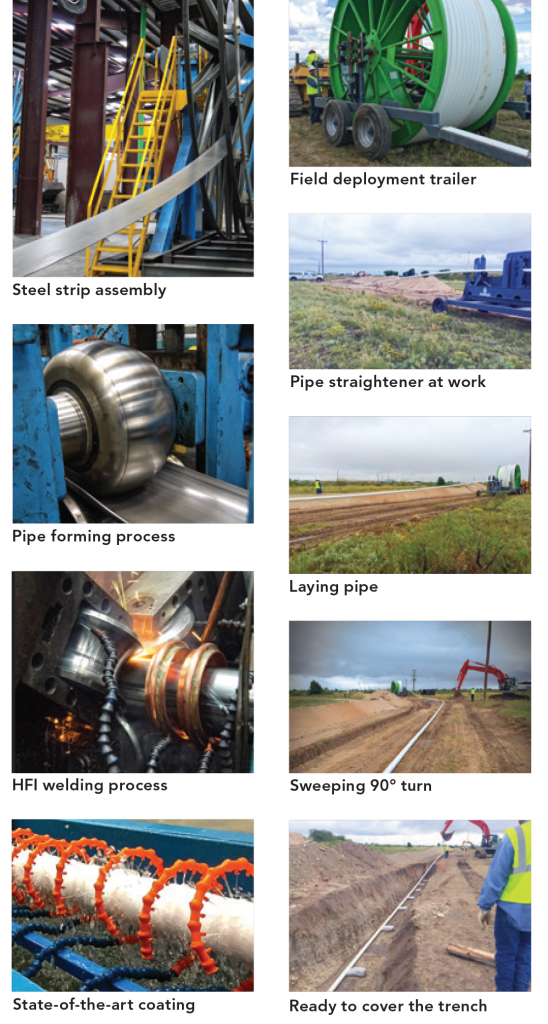

Coating Manufacturing

The Global Tubing coating manufacturing layout is the most advanced system in the world and utilizes a fully integrated milling and coating operation.

Global Tubing’s Coiled Line Pipe system delivers unrivalled value to the demanding E&P industry by saving over 20% on the project’s installed cost and not compromising on quality, delivery or HSEQ impact.

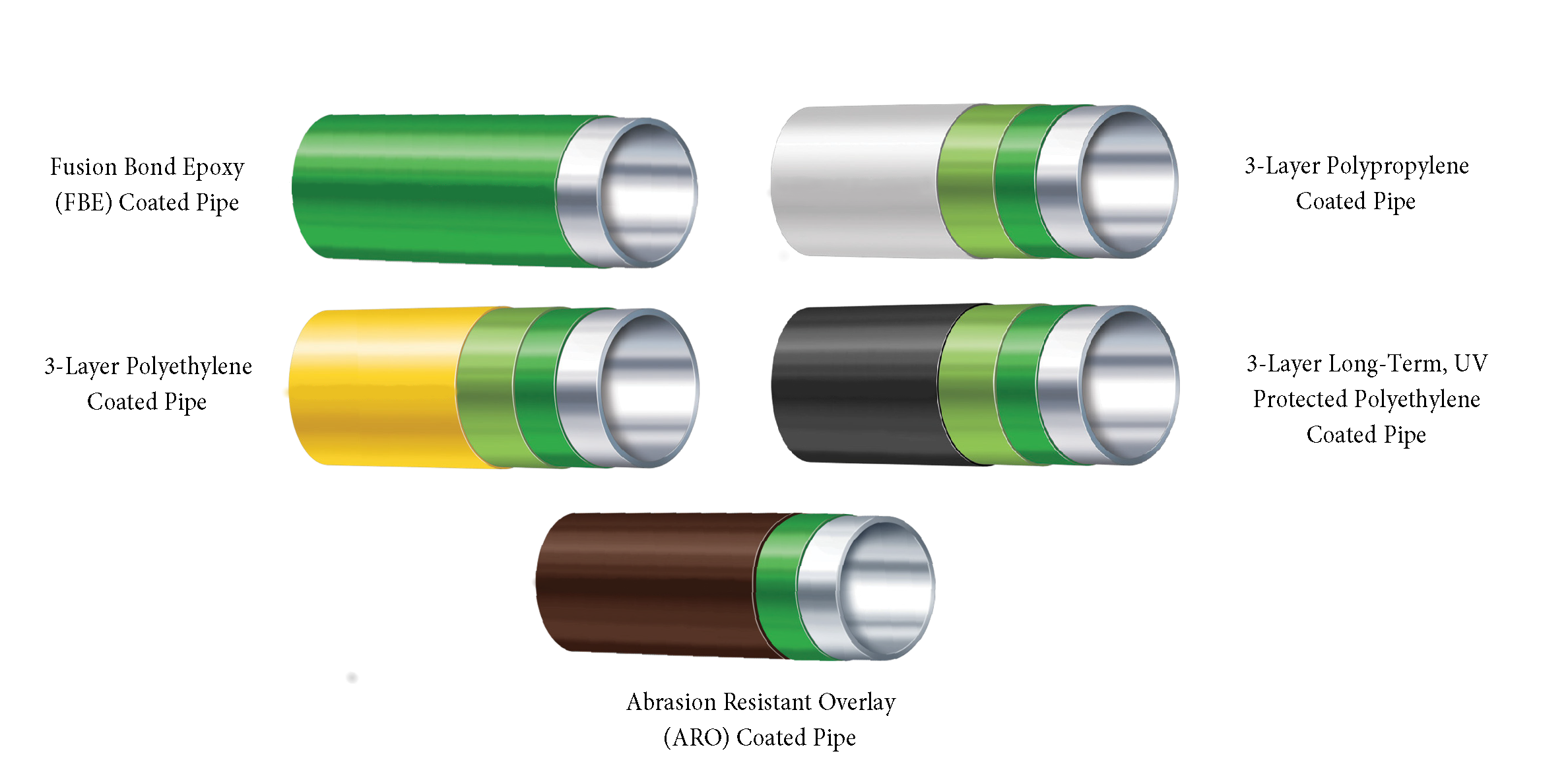

The standard system being offered by Global Tubing for coiled line pipe consists of the following:

  • A fusion bonded epoxy primer applied to a prepared steel surface
  • An abrasion resistant overlay applied for the world’s harshest environments
  • An adhesive copolymer tie layer
  • An extruded polyolefin top-coat (typically high-density polyethylene or alternatively polypropylene for high-temperature applications) as required to achieve the required total coating thickness.
  • An adhesive copolymer tie layer
