Enhanced Oil Recovery Products

As existing oil and gas reservoirs mature, enhanced oil recovery (EOR) is crucial to pull reserves that conventional extraction methods can’t reach. Forum offers proven EOR products to maximize recovery and extend the positive production of your wells.

Download Catalog

Injection Tee

Designed for water or CO2 injection, Forum’s injection tees are designed to work seamlessly with our gravity ball checks and in-line check valves.

  • Multiple sizes available
  • Female National Pipe Thread (FNPT) x external-upset-end (EUE) pin
  • Nickel aluminum bronze or 316 stainless steel (SS)
  • ANSI 600-1500 pressure rating

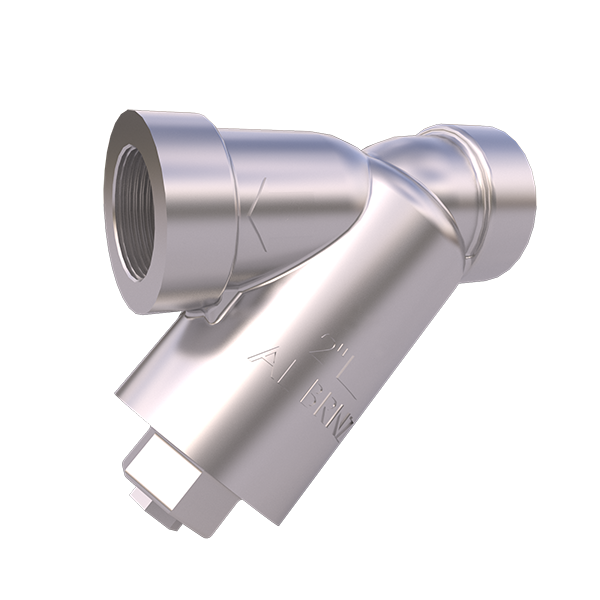

Y Strainer

Our Y strainers are designed to easily remove working fluid debris during waterflood injections. Installed upstream of flow meters, strainers trap debris in filter screens that can be easily removed via convenient blow-down ports.

  • One- and two-inch sizes
  • FNPT or ANSI 900/1500 flanged
  • Nickel aluminum bronze or 316 SS

Gravity Ball Check

Designed for waterflood injection, Forum’s gravity ball checks stop flow from entering tubing if pressures exceed those of the injection lines. Cap threads are sealed by an O-ring to protect them from flow and corrosion.

  • One- and two-inch sizes
  • Threaded, union or socket-weld connection
  • ANSI 1500 pressure rating
  • Nickel aluminum bronze or 316 SS

O-Ring Union

O-ring unions simplify the construction of injection facilities, and any assembly part can be removed or changed without having to dismantle the entire installation.

  • Multiple sizes available
  • FNPT or socket-weld connection
  • ANSI 1500 pressure rating
  • 316 SS
